The complete list of FPV antennas
This is the list of antennas currently supported by maxmyrange.com, the definitive FPV range calculator.
If you spot anything missing or out of date please let me know!
A few notes:
- Gain values for different antennas were taken from manufacturer published information, as shown below.
- I don't endorse any particular antenna manufacturer so I've taken the photos at random from a selection of vendors
- The "common frequencies" column shows which frequencies each antenna can commonly be found in in FPV stores. In theory you could build most antenna designs at most frequencies
- Where 1.3 is stated its most likely that 1.2 can also be found. Same with 2.4 and 2.3
| Example photo | Common name | Gain | Polarisation | Common frequencies |
| Rubber ducky | 1db & 2db | linear | All video frequencies |
| Cloverleaf | 1.25db | circular | All video frequencies |
 |
Skew planar | 0.92db | circular | All video frequencies |
| Fan | 0.9db | circular | 1.3, 2.4 and 5.8 |
| Sky hammer | 4.25db | circular | 1.3 and 5.8 |
| Mad mushroom | 1.5db | circular | All video frequencies |
| Windmill | 1.3db | circular | 2.4 and 5.8 |
| Moxon | 5.75 | linear | 433 |
| FPVPro 1.3GHz Tx antenna | 3 | linear | 1.3 |
| Yagis | 6-16.6dB | linear | All video frequencies |
| Crosshair | 10db | circular | All video frequencies |
| Patch | 8db, 11db and 14db | linear | All video frequencies |
| Patch | 8db | circular | 1.3, 2.4 and 5.8 |
| Pepperbox | 13db | circular | 1.3, 2.4 and 5.8 |
| Helical 3, 5, 7, 10 and 16 turns | 7db, 9.5db, 11.25db, 12.5db and 15.5db | circular | All video frequencies |
| Inverted V | 1.75db | linear | 900 and 1.3 |
| 1/2wave dipole | 2.15 | linear | 433 |
| Turnstile | 2.2db | linear | 433 |
| Gatling | 16db | circular | 1.3 |
| Vulcan | 18db | circular | 5.8 |
| BiQuad | 10db | circular | 1.3 |
| Diamond SRH771 | 2.15db | linear | 433 |
| Spironet CP Patch | 8db | circular | 2.4 and 5.8 |
| MyFlyDream 23dBi patch | 23db | circular | 5.8 |
| Sniper | 13.5db | circular | 5.8 |

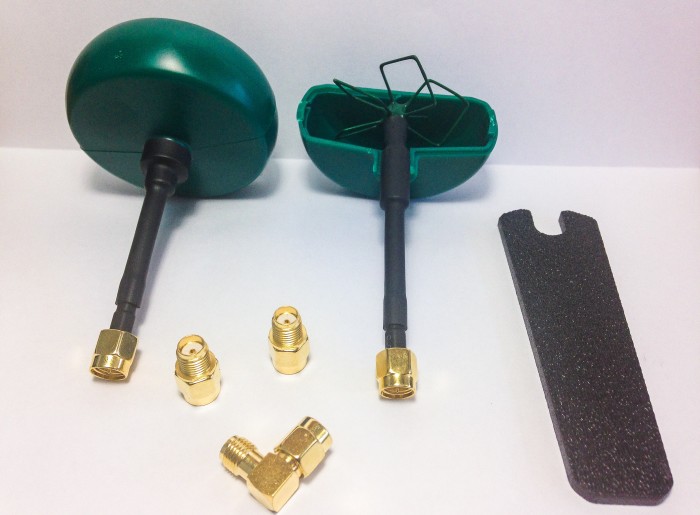

| Air-Blade | 1.5db | circular | 1.3, 2.4 and 5.8 |

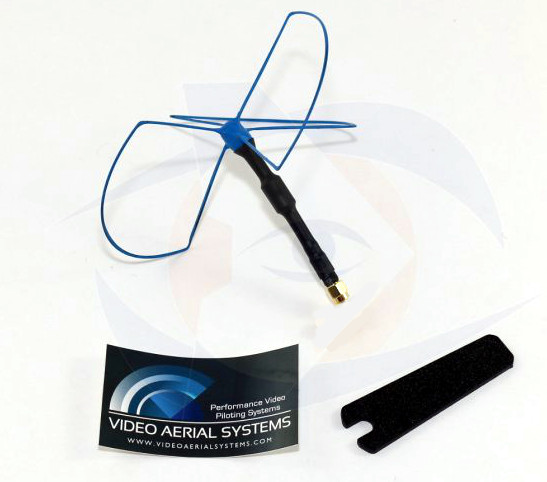

| Airscrew | 1.26db | circular | 900, 1.3, 2.4 and 5.8 |

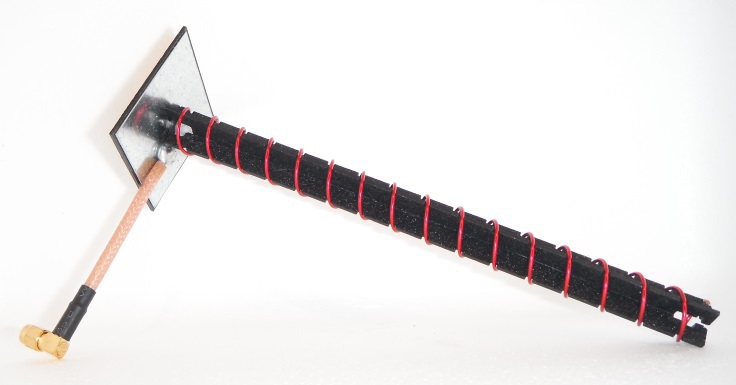

| Super cannon | 15.5db | circular | 2.4 and 5.8 |

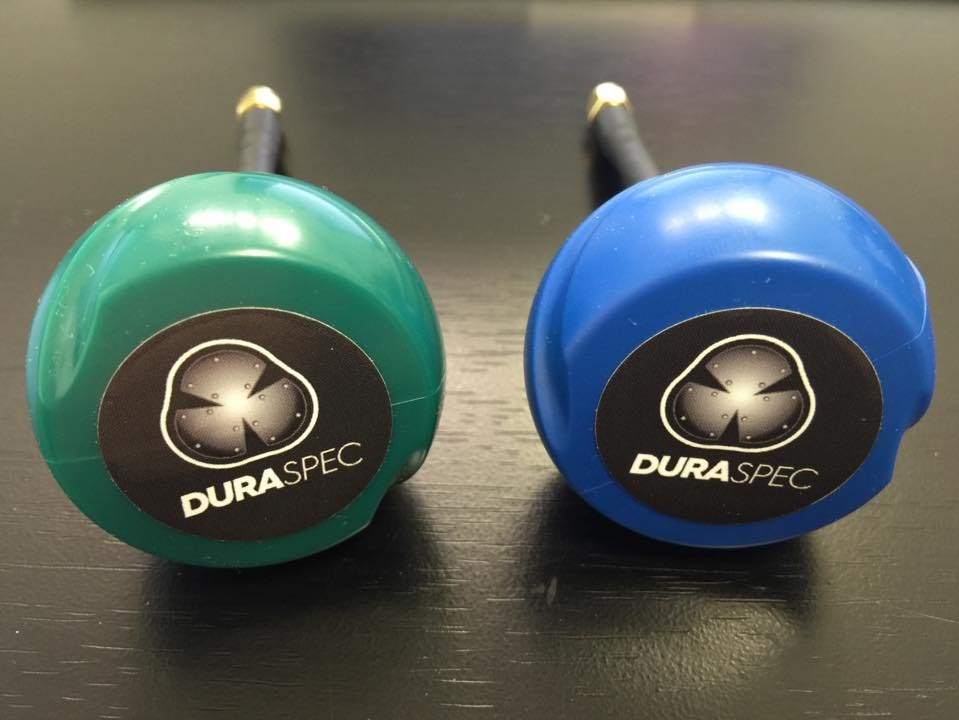

| DuraSpec | 1.25db | circular | 5.8 |

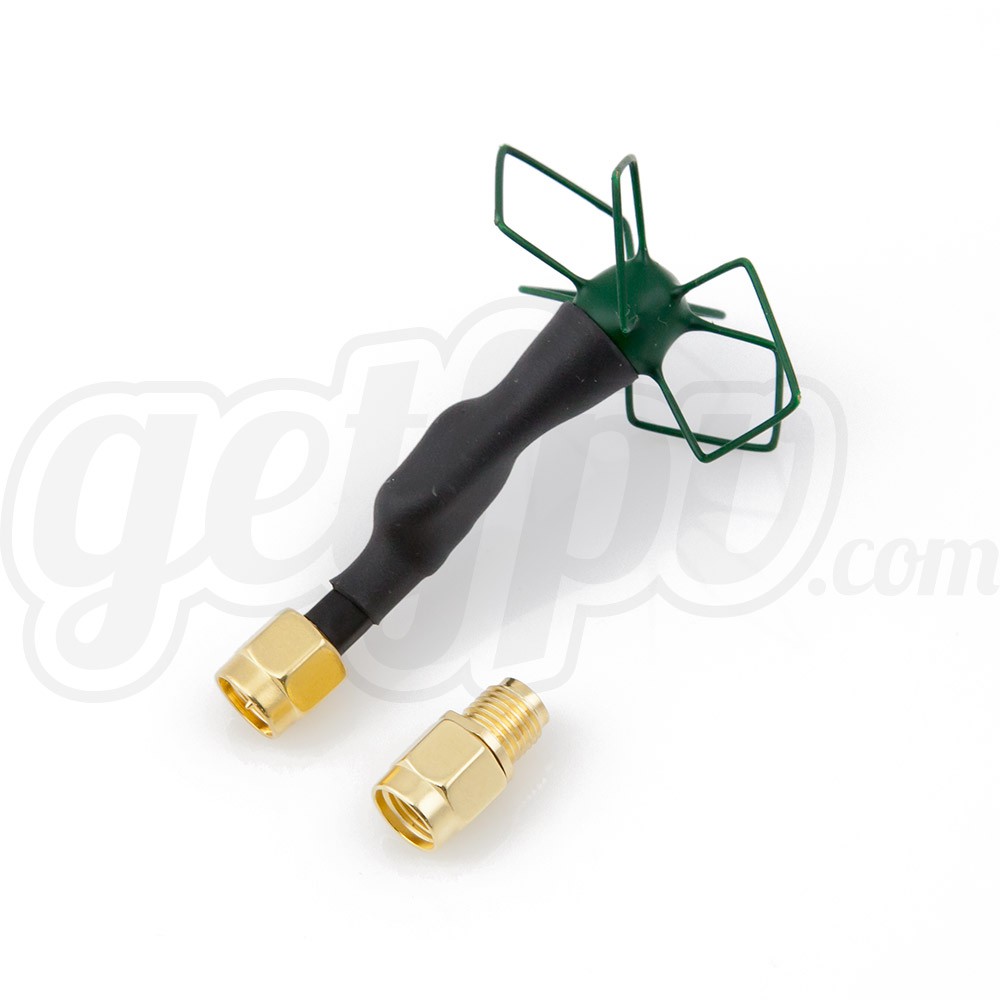

| Race Spec Airblade | 1.5db | circular | 5.8 |
| Race Spec Airscrew | 1.25db | circular | 5.8 |
| Triumph | 1.26db | circular | 5.8 |
| Lumenier Axii | 1.6db | circular | 5.8 |
| TrueRC Singluratiry | 1.6db | circular | 1.3, 2.4 |
| TrueRC X-Air | 10db | circular | 2.4, 5.8 |
|
| TrueRC X2-Air | 13db | circular | 2.4, 5.8 |
| Ion | 2.5db | circular | 5.8 |

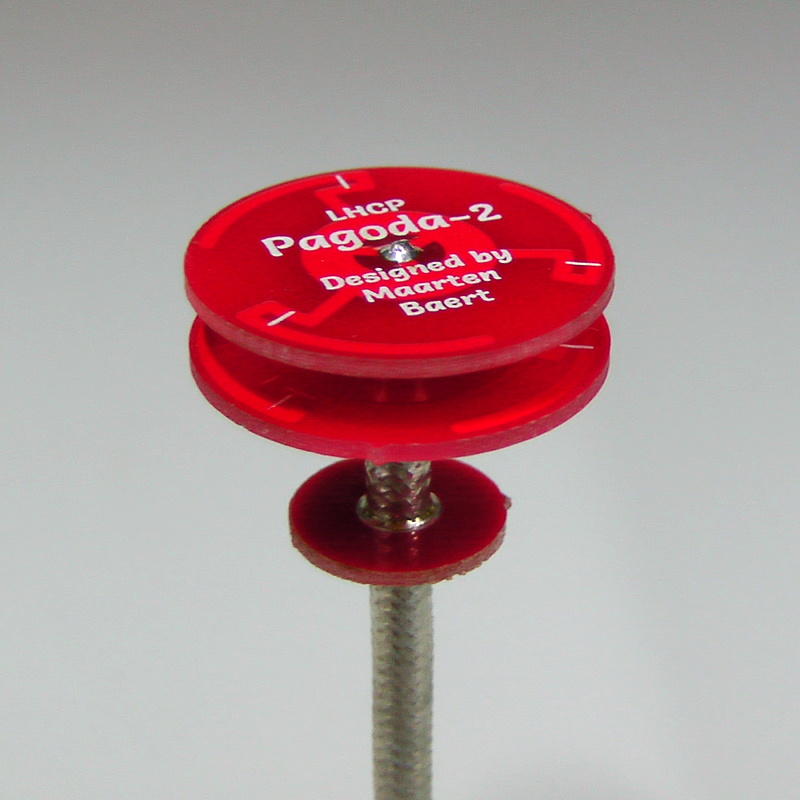

| Pagoda | 1.4db | circular | 2.4, 5.8 |
| Spironet Omni | 0.95db | circular | 5.8 |
| Clearview Vitenna | 8db | circular | 5.8 |
|
| Clearview Blade Yagi | 12db | Linear | 5.8 |
